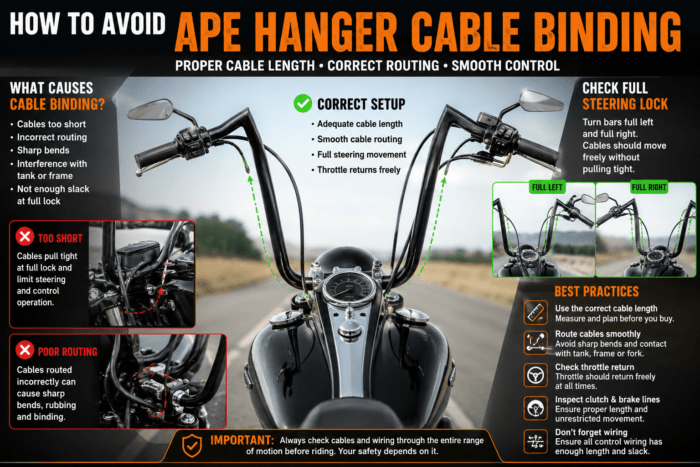

How to Avoid ape hangers Cable Binding

Installing tall ape hanger handlebars can dramatically change the look and riding position of a Harley-Davidson and knowing How to Avoid ape hangers Cable Binding is a great step . But as handlebar height increases, so does the importance of correct cable routing, cable length, and control clearance. FAT BAGGERS INC 1-1/4 EZ Install Meathook Handlebars 14″ Black Ape Hangers Cables

One of the most common problems after installing ape hangers is cable binding. A throttle cable, clutch cable, or brake line that is too short, poorly routed, or sharply bent can interfere with steering and control operation.

This guide explains how to avoid ape hanger cable binding, what causes it, how to check your cables, and what to consider when choosing extended Harley cable kits. How to Avoid ape hangers Cable Binding OEM Factory Harley Panhead Hydra glide Handlebars 1949-1953 Orig Vtg Patina FL E

What Is Ape Hanger Cable Binding?

Cable binding occurs when a motorcycle cable, brake line, or wiring harness becomes restricted as the handlebars are turned or the controls are operated.

Instead of moving freely, the cable may:

• Pull tight
• Develop a sharp bend
• Rub against the frame
• Catch on another component
• Restrict throttle movement
• Interfere with steering
• Prevent the handlebars from reaching full lock

With taller ape hangers, the original factory cables may no longer have enough length or the correct routing to accommodate the new handlebar position. Pre-Assembled vs Custom Cable Kits for 16” Ape Hanger

That makes cable planning an important part of any Harley ape hanger installation. How to Avoid ape hangers Cable Binding

Why Do Ape Hangers Cause Cable Binding?

Ape hanger handlebars can be significantly taller and sometimes wider than stock handlebars.

When the bars are raised, the distance between the handlebar controls and the motorcycle’s frame or steering head increases.

This can create additional demand for:

• Clutch cable length
• Brake-line length
• Throttle cable length
• Electrical wire length
• Throttle-by-wire wiring
• Control wiring

If the original components are retained when additional length is required, they may become stretched when the handlebars are turned. How to Avoid ape hangers Cable Binding Black Harley FXD FLS Softail Dyna Chopper 12″ Ape Hanger 1.5″ Handlebars Knurled

1. How to Avoid ape hangers Cable Binding step 1 Choose the Correct Cable Length

One of the most important ways to prevent ape hanger cable binding is selecting the correct cable length.

Do not assume that a cable labeled “extended” will automatically work with your particular handlebars.

Cable requirements depend on:

• Handlebar height
• Handlebar width
• Pullback
• Risers
• Motorcycle model
• Model year
• Control configuration
• Routing
• Fairing configuration

A 12-inch ape hanger on one Harley may require a different cable setup than a 12-inch bar on another motorcycle.

Measure Before Ordering

Before purchasing an extended cable kit, determine:

Current cable length + additional handlebar height + routing requirements = approximate required replacement length

This is only a starting point. The final cable length should allow smooth movement without excessive slack.  Chrom Harley FXD FLS Softail Dyna Chopper 18″ Ape Hanger 1.5″ Handlebars Knurled

2. Don’t Use a Cable That Is Too Short

A cable that is too short is one of the easiest ways to create binding.

When the handlebars are turned fully left or right, a short cable may become extremely tight.

Signs include:

• Cable stretching
• Sharp bends
• Tight throttle movement
• Clutch lever becoming difficult to operate
• Brake line pulling tight
• Wiring becoming stretched

The cable should never act as a physical limit on handlebar movement.

If the cable becomes tight before the handlebars reach their normal steering range, the routing or cable length needs to be corrected. How to Avoid ape hangers Cable Binding  Harley Ape Hanger Handlebars Fitting

3. Avoid Excessively Long Cables

Going too long isn’t necessarily the solution either.

An excessively long cable can create its own problems.

Extra cable may:

• Form large loops
• Rub against the tank
• Catch on the frame
• Interfere with controls
• Look untidy
• Become trapped during steering
• Create unnecessary bends

The goal is adequate length with smooth routing, not simply the longest cable available. How to Avoid ape hangers Cable Binding

4. Check Cable Routing Before Tightening Everything

Before permanently securing your cables, turn the handlebars slowly from one side to the other.

Watch how the cables move.

Check for:

• Tight spots
• Sharp bends
• Pinching
• Contact with the fuel tank
• Contact with the frame
• Contact with the fork
• Contact with brackets
• Interference with the controls

The cable should follow a smooth path through the entire steering range.

This simple check can identify problems before the motorcycle is fully assembled. How to Avoid ape hangers Cable Binding

5. Check Full Left and Right Steering Lock

One of the most important checks after installing ape hangers is full steering movement.

Turn the handlebars:

Fully left → center → fully right

Then repeat the process while observing the cables and wiring.

Pay particular attention to the point where the cable approaches:

• Steering neck
• Tank
• Fork
• Handlebar controls
• Frame
• Fairing

The cable should remain free throughout the steering range. How to Avoid ape hangers Cable Binding

6. Make Sure the Throttle Returns Freely

Throttle operation deserves special attention.

After installing ape hangers and rerouting the throttle system, turn the handlebars while checking throttle movement.

The throttle should:

• Rotate smoothly
• Return properly
• Remain free at full steering lock
• Not become heavier when the bars are turned
• Not stick in an open position

A throttle that changes behavior when the handlebars move is a serious warning sign. How to Install a 16 Inch Ape Hanger Cable Kit (Step-by-Step Guide)

Do not ride the motorcycle until the issue has been corrected.

7. Watch the Brake Line

The front brake line can also become stretched or incorrectly routed when installing taller handlebars.

A brake line should have enough length to accommodate the handlebar’s complete movement without becoming tight.

Check for:

• Sharp bends
• Stretching
• Contact with the fork
• Contact with the tire
• Contact with the fuel tank
• Interference with the brake lever
• Excessive slack

Brake-system modifications should be performed carefully and inspected before riding.

8. Check the Clutch Cable

For Harley models using a clutch cable, the clutch cable needs to accommodate the new handlebar position.

A cable that is too short can become tight when the handlebars are turned.

A cable that is incorrectly routed may also develop sharp bends that make the clutch lever harder to operate.

After installation:

1. Turn the handlebars left.
2. Operate the clutch lever.
3. Turn the handlebars right.
4. Operate the clutch lever again.
5. Check for changes in lever resistance.
6. Inspect the cable routing.

The clutch should operate consistently throughout the steering range.

9. How to Avoid ape hangers Cable Binding Don’t Forget the Electrical Wiring

Cable binding isn’t limited to mechanical cables.

Installing tall ape hangers can also put stress on the handlebar wiring.

Depending on the motorcycle, you may need to consider:

• Control wiring
• Throttle-by-wire wiring
• Turn-signal wiring
• Switch wiring
• Heated-grip wiring
• Electronic control wiring

If the wiring becomes stretched when the bars are turned, the wiring needs additional length or a better routing path. How to Avoid ape hangers Cable Binding

10. Consider an Extended Harley Cable Kit

For taller handlebars, an extended Harley cable kit can simplify installation.

Depending on the motorcycle and kit, an extended cable package may include components such as:

• Extended clutch cable
• Extended brake line
• Extended throttle cables
• Throttle-by-wire wiring
• Additional fittings
• Installation hardware

The exact contents vary between kits.

When shopping for an ape hanger cable kit, always verify compatibility with your Harley model, year, handlebar height, and control configuration. How to Avoid ape hangers Cable Binding Thrashin Supply Apex Floorboards For Harley 1984-2026
