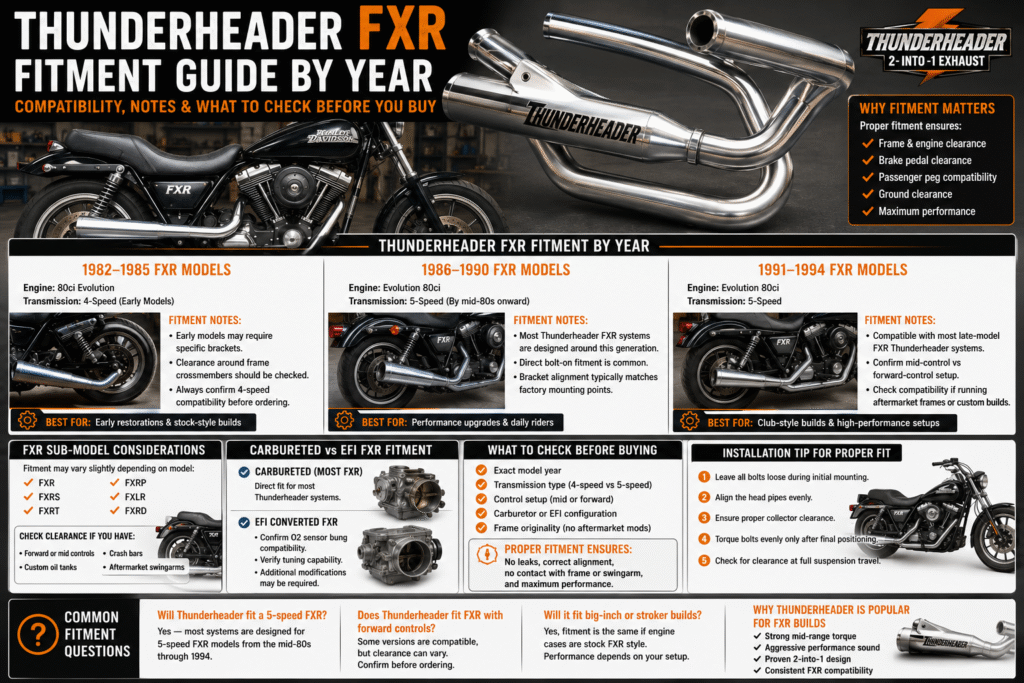

Thunderheader FXR Fitment Guide by Year

If you’re planning to upgrade your exhaust system, confirming proper fitment is the most important first step. The FXR platform is one of the most respected performance chassis designs ever produced by Harley-Davidson — but not all exhaust systems fit every year the same way.

This Thunderheader FXR fitment guide by year will help you understand compatibility differences, mounting considerations, and what to check before ordering. Chrome Thunder-header exhaust system

Why Fitment Matters on the FXR

The FXR frame ran from 1982 to 1994, and although the platform remained similar, there were small changes in:

  • Engine mounting
  • Transmission cases
  • Exhaust bracket placement
  • Carburetor vs EFI setup
  • Frame variations (FXR, FXRS, FXRT, FXRP, etc.)

Because Thunderheader systems are performance-tuned 2-into-1 exhausts, proper alignment is critical for:

  • Frame clearance
  • Passenger peg compatibility
  • Brake pedal clearance
  • Ground clearance

Thunderheader FXR Fitment by Year Range

Below is a simplified breakdown to help buyers understand compatibility.

🔹 1982–1985 FXR Models (Early Evolution Years)

Engine: 80ci Evolution
Transmission: 4-speed (early models)

Fitment Notes:

  • Early models may require specific brackets.
  • Clearance around frame crossmembers should be checked.
  • Always confirm 4-speed compatibility before ordering.

These early-year FXRs sometimes need minor adjustments depending on the specific sub-model.

🔹 1986–1990 FXR Models

Engine: Evolution 80ci
Transmission: 5-speed (by mid-80s onward)

Fitment Notes:

  • Most Thunderheader FXR systems are designed around this generation.
  • Direct bolt-on fitment is common.
  • Bracket alignment typically matches factory mounting points.

This is one of the most common fitment ranges and usually offers the smoothest installation experience. Chrome Thunder-header exhaust system

🔹 1991–1994 FXR Models (Late Production Years)

Engine: Evolution 80ci
Transmission: 5-speed

Fitment Notes:

  • Compatible with most late-model FXR Thunderheader systems.
  • Confirm mid-control vs forward-control setup.
  • Check compatibility if running aftermarket frames or custom builds.

These later FXR models are popular for performance builds and club-style setups.

FXR Sub-Model Considerations

Fitment may vary slightly depending on the FXR sub-model:

  • FXR
  • FXRS
  • FXRT
  • FXRP
  • FXLR
  • FXRD

Although the frame geometry is similar, fairings, floorboards, and control positions may affect exhaust routing.

If you’re running:

  • Forward controls
  • Mid controls
  • Crash bars
  • Custom oil tanks
  • Aftermarket swingarms

Double-check clearance before purchasing.

Carbureted vs EFI FXR Fitment

Most FXR models are carbureted. However, if your FXR has been converted to EFI:

  • Confirm O2 sensor bung compatibility.
  • Verify tuning capability.
  • Check if additional modifications are needed.

Thunderheader systems for carbureted models typically do not include O2 sensor ports unless specified.

Common Fitment Questions

Will Thunderheader Fit a 5-Speed FXR?

Yes — most systems are designed for 5-speed FXR models from the mid-80s through 1994. Always verify exact year compatibility.

Does Thunderheader Fit FXR with Forward Controls?

Some versions are compatible, but clearance can vary. Confirm before ordering.

Will It Fit Big-Inch or Stroker Builds?

Yes, but performance results depend on head pipe diameter and engine setup. Fitment remains mostly the same if the engine cases are stock FXR style.

What to Check Before Buying

Before ordering a Thunderheader for your FXR, confirm:

  • Exact model year
  • Transmission type (4-speed vs 5-speed)
  • Control setup (mid or forward)
  • Carburetor or EFI configuration
  • Frame originality (no aftermarket frame modifications)

Proper fitment ensures:

  • No exhaust leaks
  • Correct alignment
  • No contact with swingarm or frame
  • Maximum performance

Installation Tip for Proper Fit

When installing:

  • Leave all bolts loose during initial mounting.
  • Align the head pipes evenly.
  • Ensure proper collector clearance.
  • Torque bolts evenly only after final positioning.

Improper tightening order can cause misalignment.

Why Thunderheader Is Popular for FXR Builds

Thunderheader has built a reputation within the FXR community for:

  • Strong mid-range torque
  • Aggressive performance sound
  • Proven 2-into-1 design
  • Consistent FXR compatibility

Because the FXR platform is torque-oriented, many riders prefer a performance exhaust that enhances mid-range power delivery. harleydavidson.com
